In the ever-evolving landscape of information security, detecting and neutralizing unauthorized transmissions is crucial. The BH04 PRO, a professional Technical Surveillance Countermeasures (TSCM) detector with event logging capabilities, stands as a modern solution to these challenges. This review explores the BH04 PRO’s features, performance, and overall utility in combating information leakage, especially in environments vulnerable to sophisticated threats.
Overview of Key Features
Detection Capabilities
The BH04 PRO excels in detecting a wide range of signals, including 2G, 3G, 4G, 5G, DECT, Bluetooth, GSM, WLAN, WIFI, and GPS. This extensive detection range ensures comprehensive coverage against various potential threats.
Operation Modes
The device operates in three distinct modes:
- Search Mode: Ideal for real-time scanning and immediate threat identification.
- Oscillograph Mode: Provides a visual representation of detected signals, helping in detailed analysis.
- Security Mode: Designed for continuous monitoring and logging, essential for identifying intermittent threats.
Background Subtraction Function
In environments where certain transmissions are constant (e.g., near a cell tower), the background subtraction function allows the BH04 PRO to filter out these regular signals. This functionality is crucial for focusing on genuine threats without false positives.
Memory and Reporting
With four banks of memory, each capable of storing up to 2,000 signals, the BH04 PRO ensures extensive logging capabilities. Users can generate detailed PDF reports compatible with PC, Mac, and Linux, providing a comprehensive record of all detected transmissions.
Acoustic Indication and Probing Signal
The device also includes acoustic indications for immediate alerting and probing signals to actively search for hidden threats, enhancing its usability in diverse scenarios.
Detailed Analysis
Performance in Live Environments
In live environments, the BH04 PRO’s background subtraction function proves invaluable. By memorizing and whitelisting specific transmissions, security professionals can ensure that only unauthorized signals are flagged. This feature is particularly useful in operational areas where transmissions cannot be entirely sterilized.
Detection of Burst Signals
Modern threats often use burst signals to transmit stored data at irregular intervals, typically when detection is least likely. The BH04 PRO is adept at identifying these burst signals, making it a powerful tool against eavesdropping devices that operate on a store-and-forward basis. By detecting these brief but critical transmissions, the BH04 PRO ensures that even the most sophisticated threats are not overlooked.
Security Mode for Continuous Monitoring
Security Mode transforms the BH04 PRO into a 24/7 surveillance tool. By leaving the device in a high-value location, security professionals can continuously monitor the radio environment, identifying rogue transmissions in real-time. This continuous monitoring is essential for high-security environments where information leakage can have severe consequences.
Event Logging and Activity Reports
The ability to log events and generate detailed activity reports is one of the BH04 PRO’s standout features. These reports include critical information such as frequency type, transmission time, duration, and power level. This detailed logging helps in post-event analysis, allowing security teams to understand the nature and timing of detected threats comprehensively.
Practical Applications
Corporate Security
In corporate settings, especially during high-stakes meetings, the BH04 PRO can be deployed to ensure no unauthorized devices are transmitting sensitive information. Its ability to detect a wide range of signals and operate continuously makes it ideal for protecting intellectual property and confidential discussions.
High-Security Environments
For government and military applications, where the stakes are even higher, the BH04 PRO’s advanced detection and logging capabilities provide a robust defense against espionage and information leakage. The device’s high sensitivity and dynamic range ensure that even the most covert transmissions are detected.
Industrial and IoT Security
The rise of IoT devices has introduced new vulnerabilities. The BH04 PRO is equipped to handle these modern threats by detecting transmissions from IoT devices that may be compromised. This capability is crucial for industrial settings where IoT devices are prevalent and often critical to operations.
Specifications Breakdown
Frequency Range
- Antenna 1: 10 - 2400 MHz
- Antenna 2: 2400 - 8000 MHz
Sensitivity
- Antenna 1: Up to -70 dBm
- Antenna 2: Up to -50 dBm
Dynamic Range
- Antenna 1: 70 dB
- Antenna 2: 55 dB
Power and Consumption
- Battery: 3.5 - 4.2V Li-Pol battery
- Power Consumption: Up to 0.6 W
Dimensions and Weight
- Size: 130 x 80 x 16 mm (5.0 x 3.0 x 0.6 in)
- Weight: 200 g (7.0 oz)

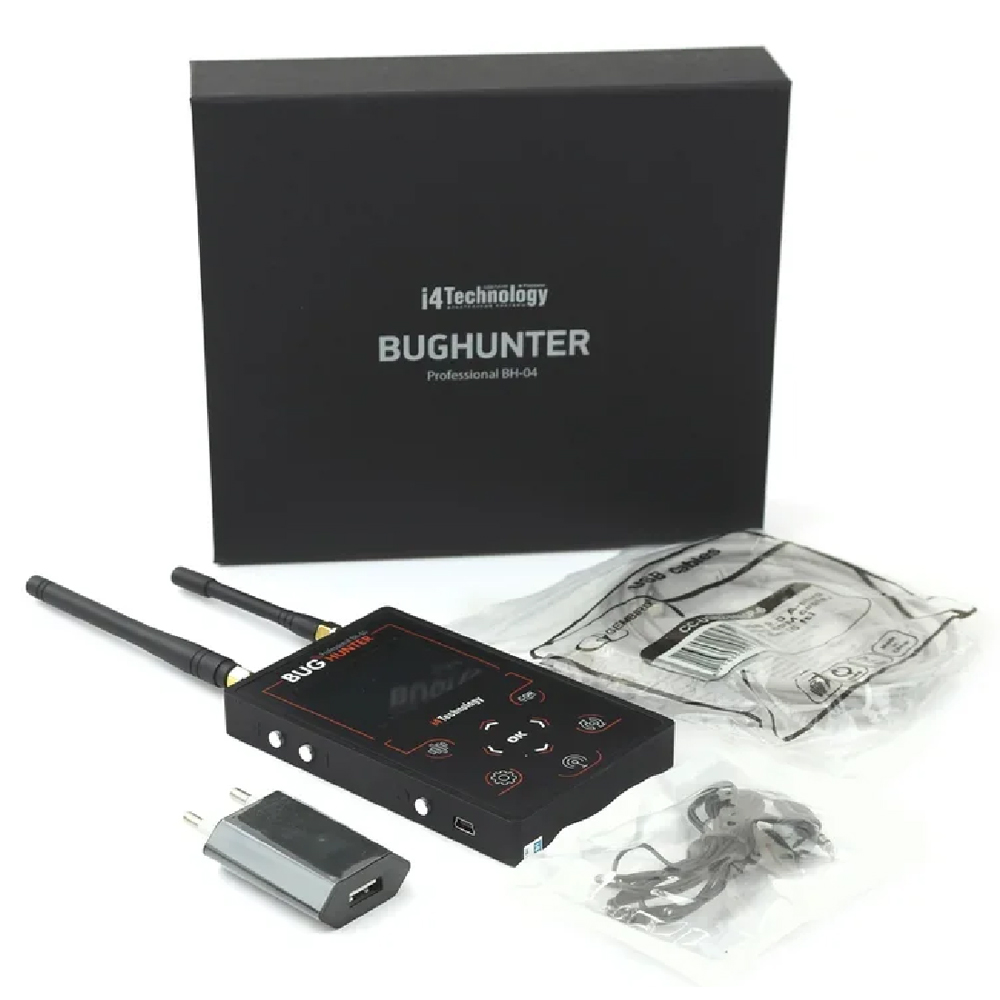

Included Accessories
- RF signal detector (PBN-BH04PRO)
- Antenna 10-2400 MHz (ANT1)
- Antenna 2400-8000 MHz (ANT2)
- Power adapter
- Mini-USB cord
- Headphones
- English Manual
- Warranty certificate
- Foam cushioned packaging/box
User Experience
Ease of Use
Despite its advanced capabilities, the BH04 PRO is user-friendly. The intuitive interface and clear manual make it accessible even to those who may not be technical experts. The inclusion of acoustic indications and an easy-to-read oscillograph mode further simplifies its operation.
Reliability and Durability
The device’s robust build and high-quality components ensure reliability and durability. Whether in a corporate office or a rugged field environment, the BH04 PRO performs consistently, providing peace of mind to its users.
Customer Support and Warranty
The BH04 PRO comes with a comprehensive warranty and reliable customer support. Users can rest assured that any issues will be promptly addressed, maintaining the device’s performance over time.
Conclusion
The BH04 PRO TSCM detector is an indispensable tool in the fight against information leakage. Its advanced detection capabilities, continuous monitoring, and detailed event logging make it a versatile and powerful solution for various security environments. Whether for corporate, governmental, or industrial use, the BH04 PRO provides the necessary features and reliability to ensure sensitive information remains secure.
In an era where information is a critical asset, the BH04 PRO stands out as a robust and comprehensive defense against unauthorized transmissions. Its ease of use, combined with sophisticated technology, ensures that even the most covert threats are detected and neutralized. For any organization serious about protecting its information, the BH04 PRO is a worthy investment.
